I. Overview UAVs (Unmanned Aerial Vehicles), as the core carrier of the low-altitude economy, have experienced explosive[…]
UAVs (Unmanned Aerial Vehicles), as the core carrier of the low-altitude economy, have experienced explosive growth in the consumer, industrial, and military sectors in recent years, with downstream applications spanning an extremely wide range. In the consumer sector, this includes aerial photography drones, FPV (First-Person View) racing drones, toy drones, and selfie drones. In the industrial sector, they are widely used in agricultural plant protection (e.g., multi-rotor crop spraying drones), logistics and distribution (e.g., feeder logistics drones), power line inspection, oil pipeline inspection, geographic surveying and mapping (e.g., oblique photogrammetry drones), security and surveillance, and emergency disaster relief (e.g., tethered lighting drones, communication relay drones). In the military sector, applications include tactical reconnaissance drones, target drones, loitering munitions, and reconnaissance-strike UAVs. Furthermore, emerging fields such as eVTOL (electric Vertical Take-Off and Landing) aircraft and manned drones are rapidly advancing.

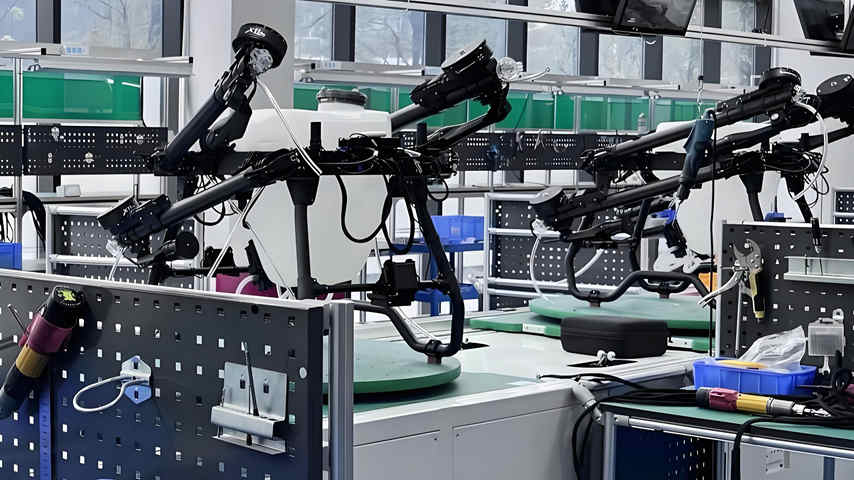

Different fields and configurations of UAVs—multi-rotor, fixed-wing, helicopter, and composite-wing—vary significantly in airframe size, structural weight, assembly processes, and production cycles. This modular multi-speed chain UAV assembly line is a dedicated production conveying platform developed specifically to meet the universal requirements of these diverse configurations and industries. The equipment is not limited to a single model; instead, through a modular mechanical structure, standardized electrical interfaces, and customizable carrier systems, it accommodates the full range of assembly requirements—from micro FPV drones to large agricultural plant protection drones, and from consumer-grade aerial photography drones to industrial-grade inspection drones. It can function as a final assembly line, sub-assembly line, testing line, burn-in (aging) line, or packaging line, completing the entire physical workflow from airframe assembly, flight controller/ESC installation, power system (motor, ESC, propeller) assembly, wiring, sensor calibration, functional testing (FCT), visual inspection, to final packaging and warehousing.
1. Multi-Speed Chain Conveying and Accumulation System
The core of the line utilizes a triple-speed differential chain as the traction mechanism, paired with aluminum alloy guide rails. The construction of the triple-speed chain allows the fixture board to travel faster than the chain’s own linear speed during free conveyance, improving transfer efficiency. When a fixture board reaches a designated workstation, a photoelectric sensor detects the signal and a pneumatic stopper raises, stopping the board and pressing it against the chain’s friction rollers to achieve in-situ停留 (accumulation). At this point, the chain continues to run while the fixture board remains stationary, allowing operators to perform airframe assembly, soldering, or testing. This mechanism enables workstations with vastly different cycle times—such as multi-axis power system installation for large agricultural drones versus gimbal calibration for small aerial photography drones—to operate in coordination on the same line. Once the stopper lowers, the fixture board automatically resumes conveying.
2. Modular Frame and Adjustable Structure
The main frame is constructed from high-strength industrial aluminum profiles or high-quality bent steel plates with an anti-static spray coating. The line legs are equipped with M16 adjustable leveling feet to accommodate uneven workshop floors. The line width can be mechanically adjusted according to the UAV airframe size, accommodating specifications ranging from micro multi-rotors with a 200mm wheelbase to large agricultural plant protection drones or eVTOLs with a wheelbase exceeding 2000mm, meeting the requirements for multi-configuration co-production.
3. Electrical Control and Speed Regulation System
The drive section employs a gear reduction motor, paired with a variable frequency drive (VFD) to achieve stepless speed regulation from 0.5 to 15 m/min. The entire line is centrally controlled by a PLC and equipped with an operation panel, allowing settings for single-station manual/automatic modes, emergency stops, and fault alarms. Start/stop acceleration and deceleration curves are adjustable to prevent precision components such as flight controllers and gimbals from shifting or being damaged due to inertia.
4. ESD Protection and Workstation Facilities
In response to the high sensitivity of UAV avionics systems (flight controllers, video transmitters, GPS modules) to electrostatic discharge, the chain rollers are made of conductive engineering plastics, and the fixture boards are made of anti-static bakelite or PVC sheets. The entire line is connected to the workshop grounding grid via copper strips to ensure effective static dissipation. Each workstation is standard-equipped with: LED lighting tubes, 220V power sockets, pneumatic quick-connect couplers, and A4 process document holders, facilitating operations such as screw tightening, soldering, wiring, and testing.
5. Equipment Integration and Scalability
Both ends of the line can be configured with lift-and-transfer units, elevators, or simple shuttle tables to enable automatic fixture board return, forming a closed-loop system. It can also seamlessly interface with standard equipment such as dedicated UAV test fixtures, RTK base station simulators, and battery charge-discharge aging cabinets, establishing a complete automated production line for UAV final assembly and testing.
