Freezer Assembly Line

This is a specialized automated freezer assembly line​ meticulously engineered for the manufacturing of upright freezers and commercial display coolers. Addressing the physical challenges of large-volume metal enclosures—such as significant weight and bulk—this freezer production line​ integrates a heavy-duty conveyor network with isolated work cells to minimize handling damage and control the foam-injection environment.

I. Conveyor System & Facility Layout

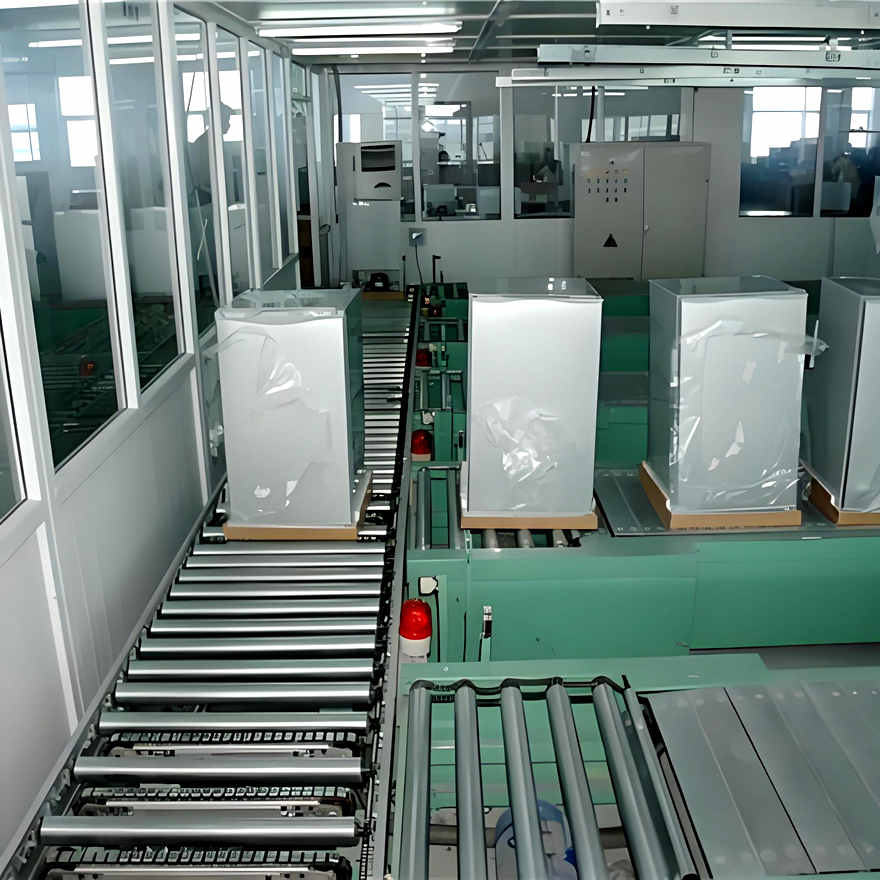

The backbone of this freezer manufacturing line​ is a robust, galvanized steel roller conveyor system designed to handle high payloads with smooth elevation transitions. A key feature is the semi-enclosed soundproof and dust-proof booth on the left, which typically houses the high-pressure polyurethane foaming unit. This physical barrier effectively contains foam particulate emissions and mitigates industrial noise during the critical insulation phase. An automated lift-and-transfer station connects the main and sub-lines, allowing flexible material handling between general assembly and offline testing areas.

II. Core Assembly & Insulation Process

The workflow is optimized for the structural demands of refrigeration units:

1. Cavity & Base Integration:​ Mechanical fastening (riveting/bolting) of the prefabricated embossed steel inner liner to the painted chassis frame.
2. Refrigeration Pre-assembly:​ Connection and pressure testing of the condenser coil and rotary compressor before mounting the sealed refrigeration pack to the rear of the cabinet.
3. Automated Foaming:​ Enclosed within the left-side booth, a robotic arm precisely dispenses liquid PU foam. Integrated vision systems monitor pour density to ensure a uniform, seamless thermal insulation layer.
4. Final Fitment:​ Installation of the thermostat, LED lighting pods, and magnetic door gaskets, followed by complex wiring harness connections ensuring EMI shielding and grounding integrity.
5. Online Diagnostics:​ Comprehensive Hi-Pot insulation resistance tests and refrigerant leak scans are conducted inline.

III. Quality Control & Testing Architecture

The freezer assembly line​ features an intelligent signaling system with prominent red stack lights that interface with the central PLC. If a unit fails a leak test or exhibits abnormal electrical parameters, the conveyor halts immediately, diverting the defective product to a dedicated rework lane. Every unit undergoes a rigorous minimum 2-hour burn-in test to validate compressor start-up sequences and the long-term stability of the thermal control system.

IV. Technical Specifications

• Target Product:​ 80L – 500L Upright Freezers / Horizontal Island Coolers
• Line Speed:​ Variable Frequency Drive (VFD), 8-15 meters/minute
• Power Supply:​ 380V / 50Hz (Configurable for R290/R404A refrigerant systems)
• Pneumatics:​ 0.6-0.8 MPa Clean, Dry Compressed Air
• Load Capacity:​ ≥150 kg per pallet/station

V. Design Advantages

By encapsulating the high-decibel and high-contamination foaming process, this freezer production line​ achieves superior ergonomics. The adoption of heavy-duty roller conveyance significantly reduces frictional wear when manually maneuvering large, heavy enclosures, thereby maximizing Overall Equipment Effectiveness (OEE) and First Pass Yield (FPY).
